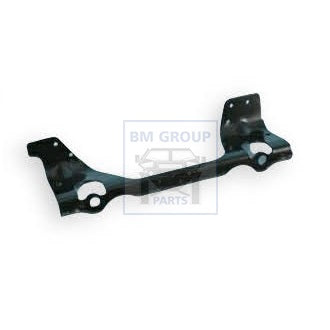

14033824 BRACKET, FUEL INJECTION PIPE RH
Part #: 14033824 ; 5740170
Description: BRACKET, FUEL INJECTION PIPE, RH
NSN: 5340-01-159-6626 ; 5340011596626
| Pos. # | Image | NSN | Part Number | Description |
| 1 |  |
4710-01-446-9570 | 12554835 | TUBE, BENT, METALLIC 6.5L |
| 2 |  |
4730-01-163-3544 | 15620999 | CLAMP, HOSE |
| 3 |
|
4720-01-542-3497 | 9439363 | HOSE, NONMETALLIC |
| 4 |
|
5340-01-151-9957 | 14033895 | CLAMP, LOOP |
| 5 |
|
5306-01-148-3667 | 11504512 | BOLT, MACHINE 10-1.5x16MM |
| 6 |  |
5307-01-150-9538 | 22515630 | STUD, SHOULDERED |
| 7 |
|
5340-00-881-5303 | MS21333-45 | CLAMP, LOOP |
| 8 |  |
4730-00-150-6118 | 11663000 | CLAMP, HOSE |
| 9 |  |
4720-01-184-0432 | 14066305 | TUBING, NONMETALLIC |
| 10 |  |
4710-01-412-8611 | 14098632 | TUBE ASSY, METAL 6.5L #2 CYLINDER |
| 11 |  |
4710-01-412-1669 | 14098634 | TUBE ASSY, METAL 6.5L #4 CYLINDER |
| 12 |  |
5325-01-549-9716 | 12554808 | GROMMET, NONMETALLIC |
| 13 |  |
4710-01-411-8489 | 14098636 | TUBE ASSY, METAL 6.5L #6 CYLINDER |
| 14 |  |
4710-01-411-8492 | 14098638 | TUBE ASSY, METAL 6.5L #8 CYLINDER |
| 15 |  |
4710-01-411-8488 | 14098635 | TUBE ASSY, METAL 6.5L #5 CYLINDER |
| 16 |  |
5342-01-166-1534 | 14066301 | CAP, FUEL INJECTOR |
| 17 |  |
4710-01-412-1667 | 14098637 | TUBE ASSY, METAL 6.5L #7 CYLINDER |
| 18 |  |
5340-01-159-6626 | 14033824 | BRACKET, DOUBLE ANGLE R.H. |
| 18 |
|
5340-01-440-9678 | 05742118 | BRACKET, MOUNTING L.H. |
| 19 |
|
5310-01-165-3331 | 11500749 | NUT, PLAIN, HEXAGON |
| 20 |  |
4710-01-412-8615 | 14098633 | TUBE ASSY, METAL 6.5L #3 CYLINDER |
| 21 |  |
5325-01-160-4618 | 23503124 | GROMMET, NONMETALLIC |
| 22 |  |
5305-01-150-1521 | 11503617 | SCREW, TAPPING |
| 23 |  |
5340-01-493-2538 | 10225180 | CLAMP, LOOP |
| 24 |  |
4710-01-493-1712 | 10154669 | TUBE ASSY, METAL 6.5L #1 CYLINDER |
| 25 |  |
5340-01-493-2555 | 10151497 | CLAMP, LOOP |
