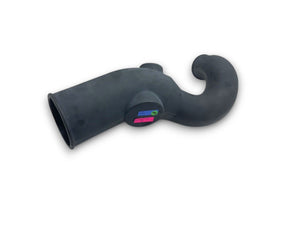

6007701 AIR HORN INDUCTION SYSTEM
Part #: 6007701 , 12469074
Description: AIR HORN INDUCTION SYSTEM
NSN: 4720-01-455-7861 ; 4720014557861
| Pos. # | Image | NSN | Part Number | Description |
| 2 |
|
5310-00-809-4058 | MS27183-10 | WASHER, FLAT 1/4 |
| 3 |  |
2940-01-188-3224 | 12338373 | SHIELD ASSY AIR INTAKE |
| 6 |  |
4730-01-478-5151 | 667-69 | CLAMP, HOSE |
| 7 |  |
5584588 | HOSE PREFORMED | |
| 8 |
|
2590-01-458-2609 | 12469073-2 | INSERT, AIR HORN |
| 9 |  |
4720-01-455-7861 | 12469074 | TUBE, AIR HORN INTAKE |
| 10 |  |
4720-01-455-9981 | 5934807 | HOSE, NONMETALLIC |
| 11 |
|
4730-01-473-5537 | 667-43 | CLAMP, HOSE |
| 12 |
|
4730-01-164-7028 | 14050444 | ADAPTER, STRAIGHT TUBE TO HOSE |
| 13 |
|
2590-01-495-0534 | 12469073-1 | INSERT, AIR HORN 1.75-2.38 |
| 14 |  |
5340-01-189-9861 | 5590657 | BRACER, CORNER |
| 15 |
|
5307-01-150-9538 | 22515630 | STUD, SHOULDERED |
| 17 |  |
2940-01-188-5117 | 12339911 | AIR CLEANER, INTAKE |
| 20 |  |
2520-01-024-1273 | L-638C2GS | .BOOT, DUST AND MOIST |
| 21 |  |
2940-01-188-3776 | 12342870 | .FILTER ELEMENT, INTAKE AIR CLEANER |
| 23 |  |
5330-01-452-2474 | 12342872 | .GASKET, COVER, AIR FILTER |
| 24 |
|
2940-01-188-3387 | 12342869 | .COVER, AIR CLEANER |
| 25 |  |
5340-01-360-1758 | L-223C26 | .CLAMP, LOOP |
| 26 |
|
5305-00-984-6212 | MS35206-265 | SCREW, MACHINE #10-24 X .750 |
| 27 |
|
5310-01-417-7333 | 4397005-008 | WASHER, FLAT |
| 28 |
|
2540-01-196-4726 | 12338863 | SHIELD, AIR CLEANER |
| 29 |  |
5340-01-208-8688 | 5585094 | NYLON CLIP, SHIELD |
| 30 |  |
4730-01-210-5785 | 11608950-28 | CLAMP, HOSE AIR CLEANER |
| 31 |
|
5342-01-187-7029 | 12338842 | BRACKET, TUBE DRAINA |
| 33 |
|
5305-00-989-7434 | MS35207-263 | SCREW, MACHINE #10-32 X .500 |
| 36 |
|
5330-01-188-0911 | 12338379 | GASKET |
| 37 |
|
4720-01-214-5757 | 12340799 | TUBING, NONMETALLIC |
| 38 |
|
4730-01-185-5348 | 1068X4 | ADAPTER, STRAIGHT PIPE TO HOSE |
| 39 |
|
4730-01-070-7680 | 1069X6X2 | ELBOW, PIPE TO HOSE |
