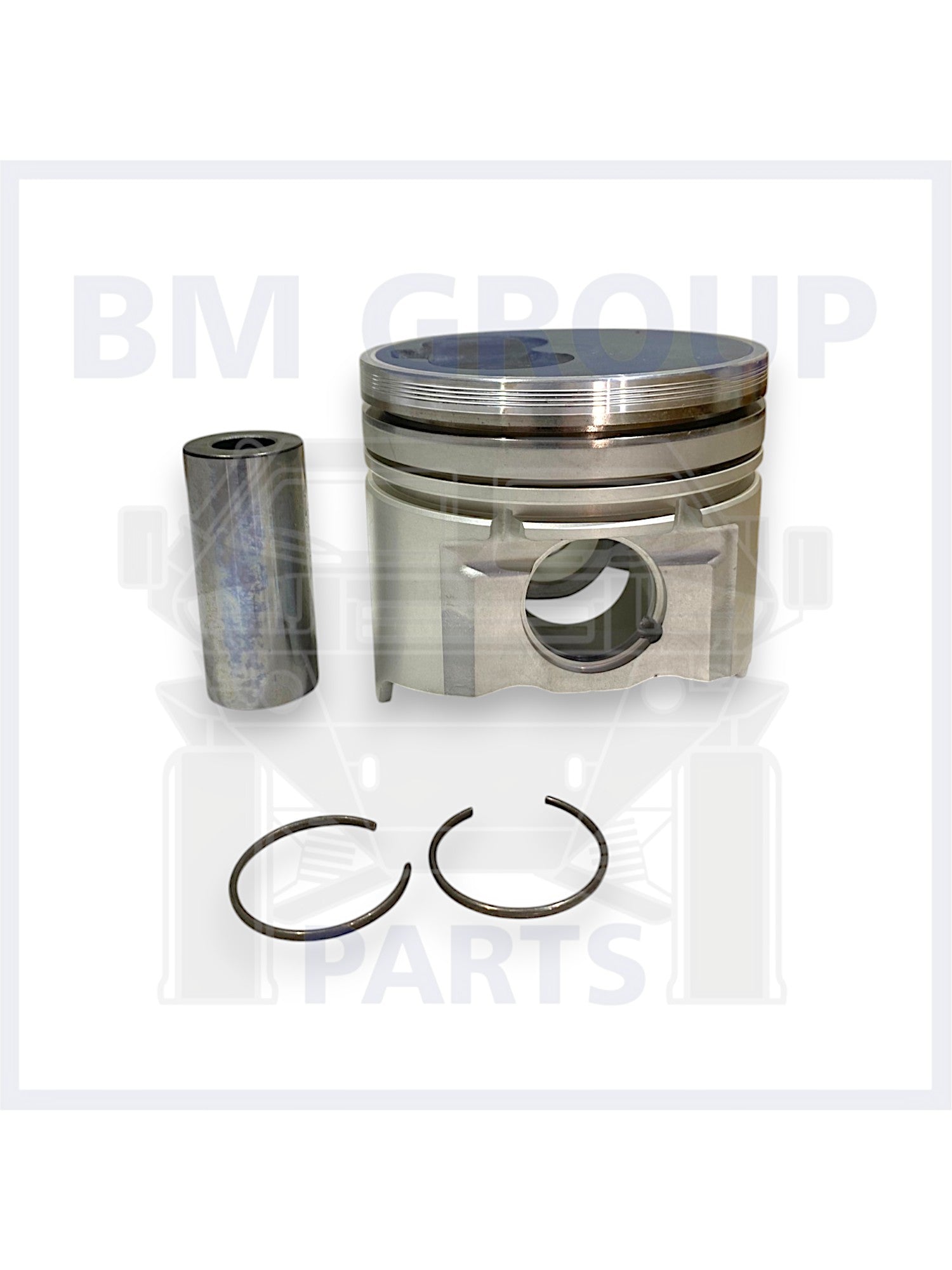

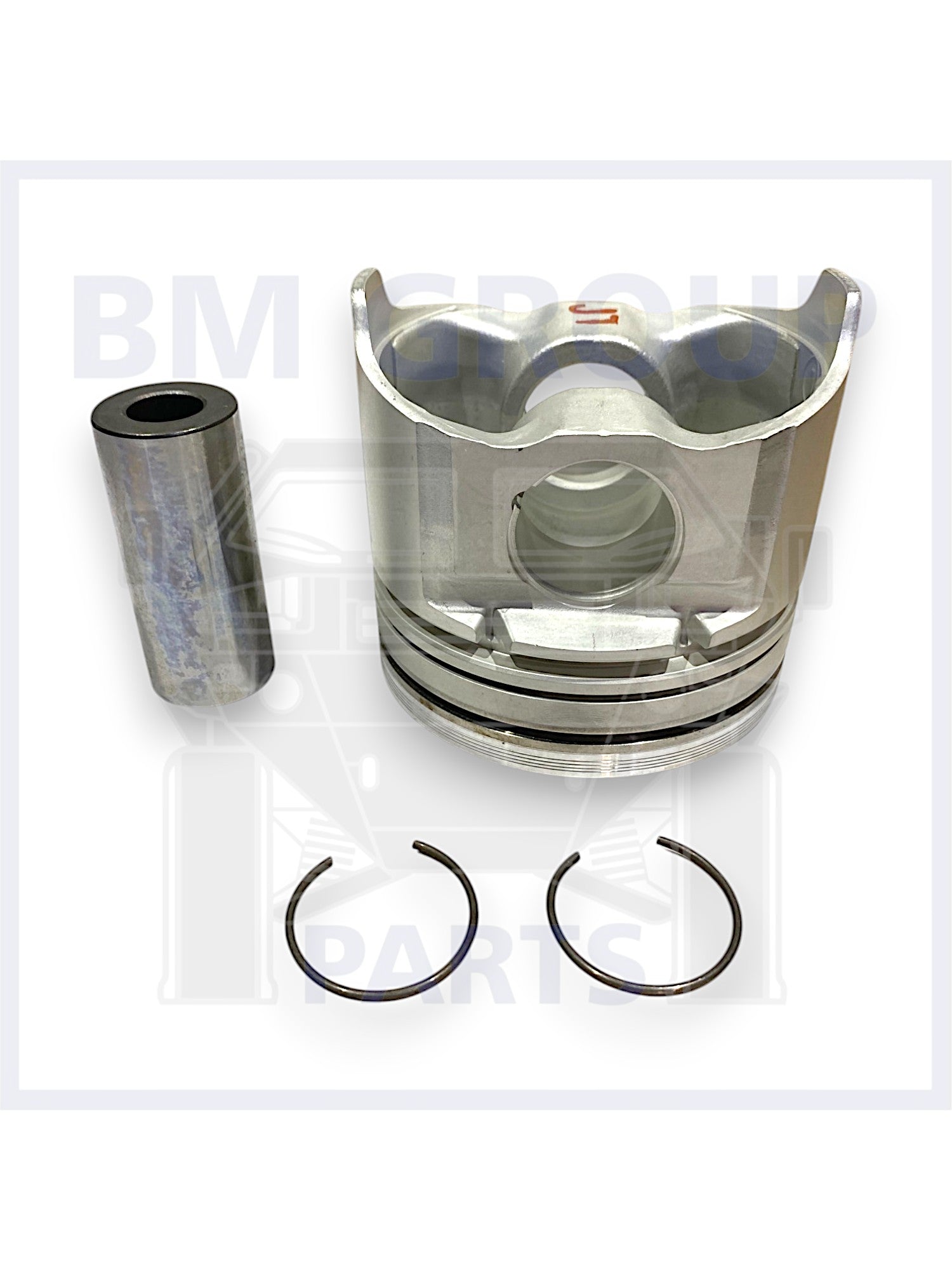

5743282 PISTON STD PISTON, STANDARD SIZE FOR 6.5 ALL
5743282 PISTON STD PISTON, STANDARD SIZE FOR 6.5 ALL

5743282 PISTON STD PISTON, STANDARD SIZE FOR 6.5 ALL

  • + VAT (%20)
    + VAT (%20)
Only 51 left!

Ref #: 5743282 ; 12550059

Description: PISTON STD PISTON, STANDARD SIZE FOR 6.5 ALL

NSN: 2815-01-478-2897 ; 2815014782897, 2815-01-412-8161 ; 2815014128161




Pos. # Image NSN  Part Number Description
1 2815-01-399-1020 12369198 RING SET, PISTON 6.5L, STANDARD
1 2815-01-412-6760 12369199 RING SET, PISTON 6.5L, .50 MM OVERSIZE
2 2815-01-412-8161 12550059 PISTON, INTERNAL COM 6.5L STANDARD
2 2815-01-412-8162 12550062 PISTON, INTERNAL COM 6.5L, .50MM OVERSIZE
3 5325-01-234-0447 23500298 RING, RETAINING
4 2815-01-150-2198 14025523 CONNECTING ROD, PISTON
5 5306-01-165-2425 14025526 BOLT, CONNECTING ROD
7 5310-01-165-3333 14025527 NUT, PLAIN, HEX, CONNECTING ROD
8 3120-01-155-3517 12517006 BEARING HALF, SLEEVE STANDARD
8 3120-01-165-4826 18009095 BEARING HALF SET, SL .026MM UNDERSIZE
